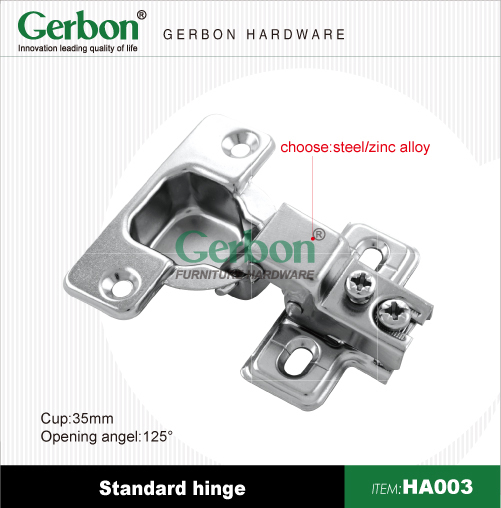

Standard Hinge
HA003
35mm cup short arm hinge
Product details:
|
Name: |
35mm cup short arm hinge |
|
Item No.: |
HA003 |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated |
|
Salty test: |
36 hours |
|
Open and close times |
80000 cycles |
|
Cup diameter |
35mm |
|
Door (C) dimension |
3-6mm |
|
Depth of the cup |
11.3mm |
|
Door thickness |
3-6mm |
|
Opening angle |
125 degree |
|
Brand |
Gerbon |
Advantages for cabinet & furniture user:
1. Long lifetime of the furniture & cabinet
2. Slide-on type
3. 2 holes plate
4. Excellent durability
5. Customer's Logo: available
6. Passed 80000 open-close test
7. Passed salt and mist for over 36 hours
8. Competitive price
9. Screws with polybag are available
10. Knock in dowel available
11. One way
12. FGV type, but short arm
13. Steel and zinc alloy plate or arm are available
14. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
