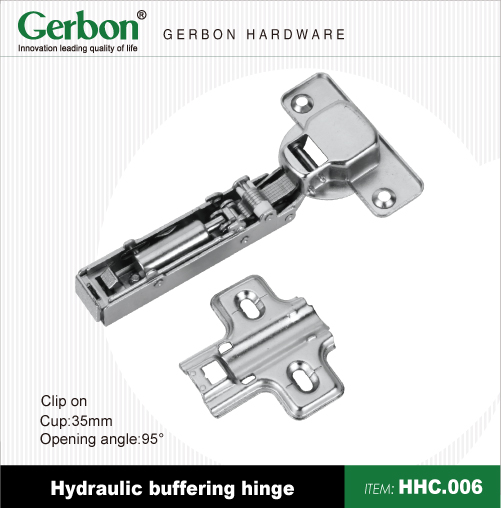

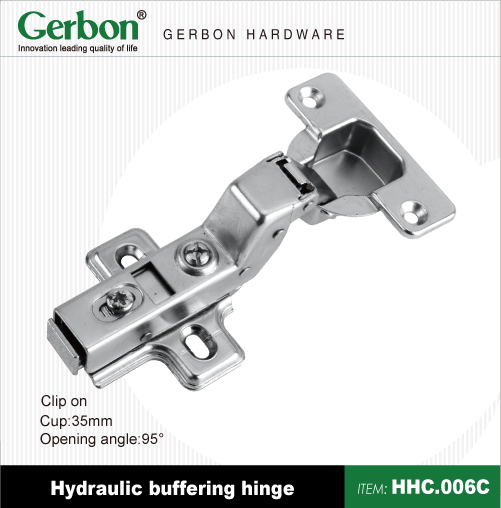

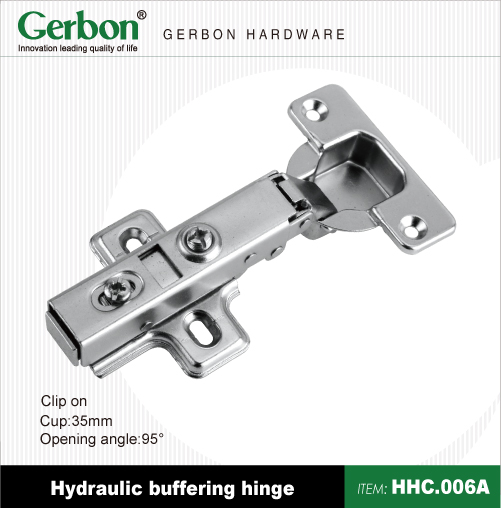

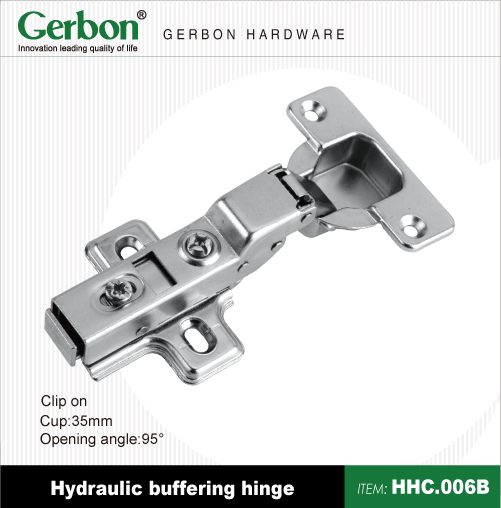

Hydraulic Buffering Hinge
HHC.006
Soft close hardware hinge
Product details:
|
Name: |
Soft close hardware hinge |
|
Item No.: |
HHC.006A/B/C |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated |
|
Salty test: |
36 hours |
|
Open and close times |
100000 cycles |
|
Cup diameter |
35mm |
|
Door (C) dimension |
3-7mm |
|
Depth of the cup |
11.5mm |
|
Door thickness |
14-21mm |
|
Opening angle |
95 degree |
|
Brand |
Gerbon |
Advantages for cabinet & furniture user:
1. Unsurpassed hydraulic buffering system–for the lifetime of the furniture
2. Easy assembly:quick fitting with self closing
3. 2 & 4 holes all are avaliable
4. Open&Close:noiselessly,calmly
5. Excellent durability
6. Customer's Logo:welcome
7. Passed 100000 open-close test
8. Passed salt and mist for over 48 hours
9. Competitive price
10. Arm cover, screw, cup cover all are avaliable
11. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
