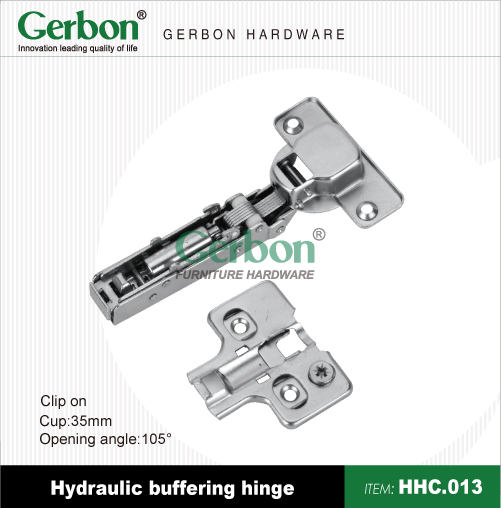

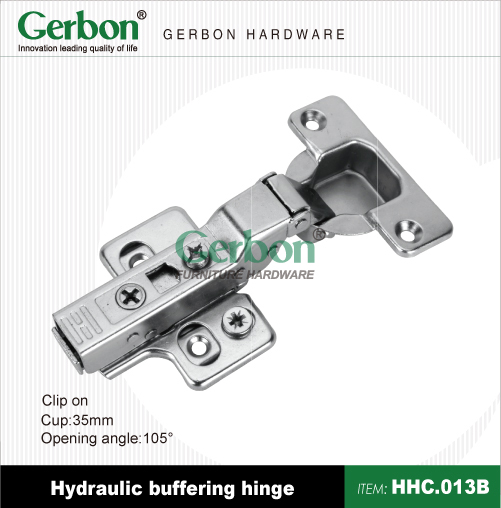

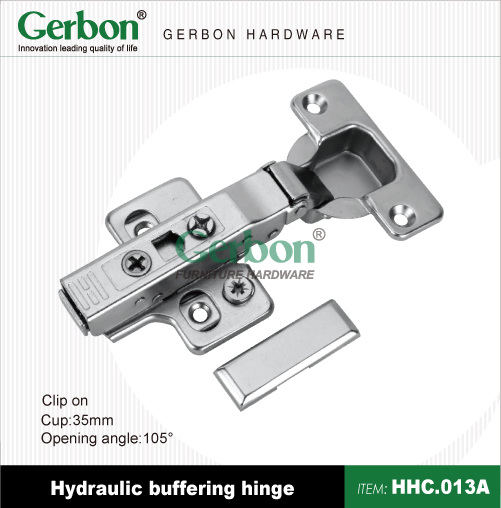

Hydraulic Buffering Hinge
HHC.013
Soft close hinges
Product details:
|
Item No. |
HHC.013A/B/C |
|
Material |
Steel |
|
Finish |
Brass+nickel plated |
|
Cycles |
100000times |
|
Types |
Full cover,half cover,insert |
|
Opening Angle |
105° |
|
Depth of hinge cup |
11.5mm |
|
Diameter of hinge cup |
35mm |
|
Door dimension size |
3-7mm |
|
Range for door thickness |
14-21mm |
|
General usage range |
Furniture,Office |
Advantages:
|
Hydraulic buffering |
Steel or brass |
|
Easy assembly |
Clip-on plate |
|
Plate |
Ajustable, 2holes, 4holes, airplane holes |
|
Open&Close |
soft close |
|
Durability |
Excellent |
|
Customer's Logo |
Available |
|
Passed open&close test |
100000 times |
|
Passed salt and mist test |
36 hours |
Others(Packing&Service):
|
Packing |
100pcs/carton or as customer required |
|
Delivery date |
about 30 working days based on the order quantity |
|
MOQ |
5000 PCS |
|
Payment Term |
T/T, L/C or others for negotiation |
|
Samples Offer |
Gerbon will offer free samples in reasonable quantity for customer |
About Gerbon:
Gerbon is …
…a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock and other furniture fittings.
