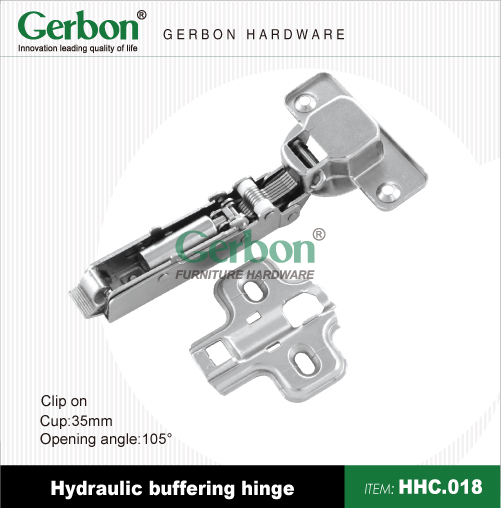

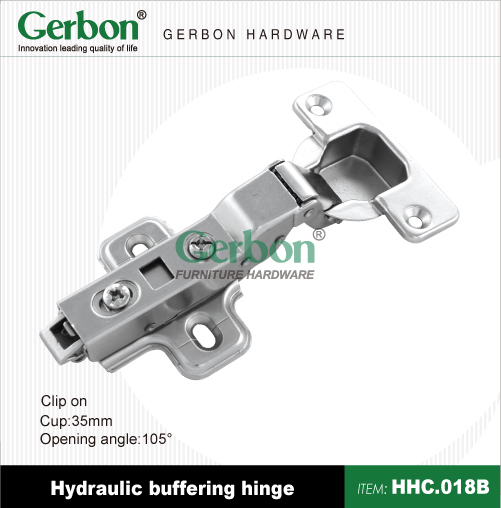

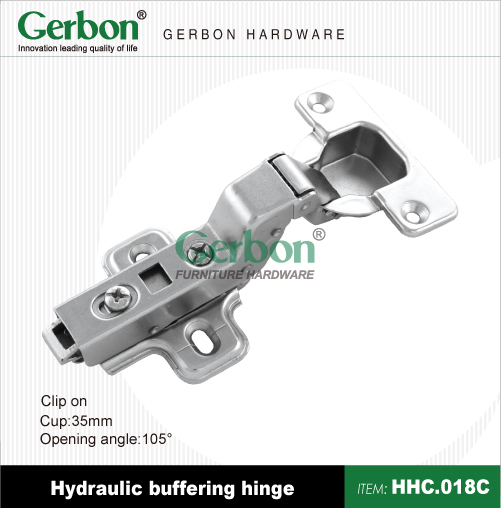

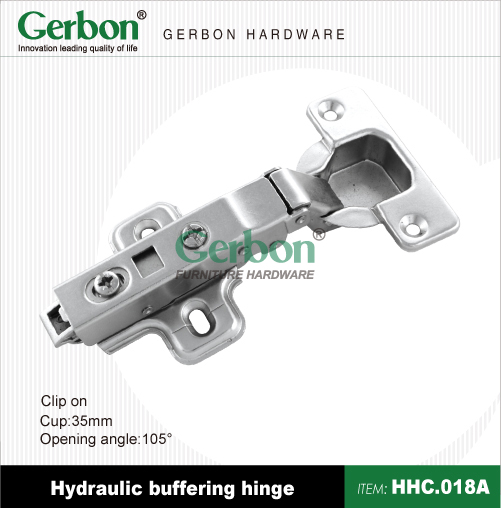

Hydraulic Buffering Hinge
HHC.018
Clip-on soft close cabinet hinge
Product details:
|
Name: |
Clip-on soft close cabinet hinge |
|
Item No.: |
HHC.018A/B/C |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated |
|
Salty test: |
36 hours |
|
Open and close times |
100000 cycles |
|
Cup diameter |
35mm |
|
Door (C) dimension |
3-7mm |
|
Depth of the cup |
9.5/11.5mm |
|
Door thickness |
14-21mm |
|
Opening angle |
105 degree |
|
Brand |
Gerbon |
Advantages:
1.Unsurpassed hydraulic buffering system–for the lifetime of the furniture
2.Easy assembly:quick fitting with self closing
3.2 holes, 4 holes are available
4.Open&Close:noiselessly,calmly
5.Excellent durability
6.Customer's Logo: available
7.Passed 100000 open-close test
8.Passed salt and mist for over 36 hours
9. Competitive price
10. arm cover & cup cover are available
11. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
