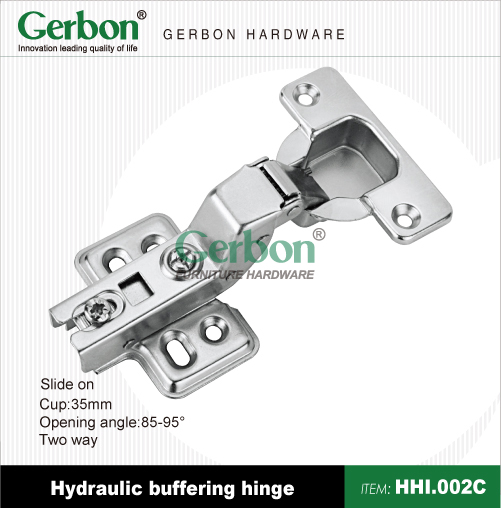

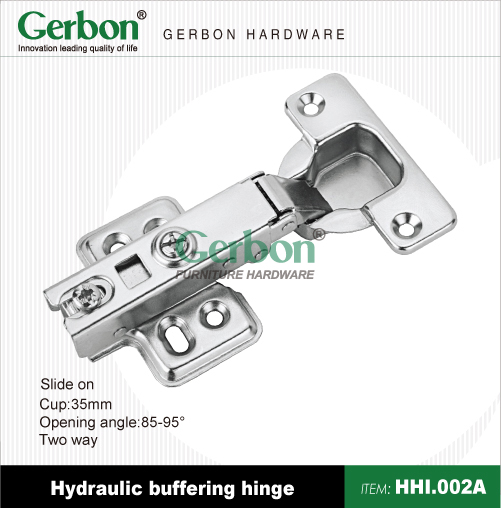

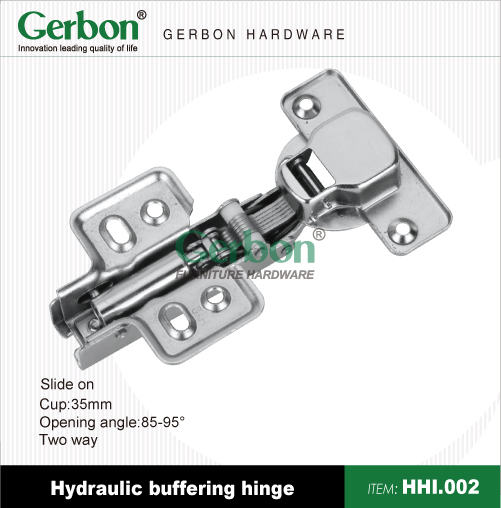

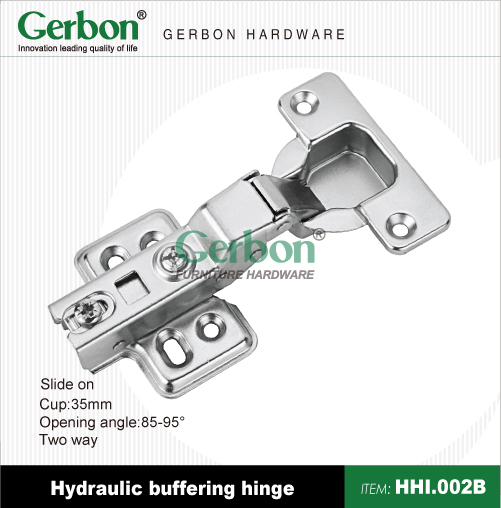

Hydraulic Buffering Hinge

HHI.002

Slide-on soft close hinge

Product details:

Name:

Slide-on hydraulic hinge

Item No.:

HHI.002A/B/C

Material:

Steel

Finished

Brass first, then nickel plated

Salty test:

36 hours

Open and close times

100000 cycles

Cup diameter

35mm

Door (C) dimension

3-7mm

Depth of the cup

11.5mm

Door thickness

14-21mm

Opening angle

85-95degree

Brand

Gerbon



Advantages for furniture:

1. Unsurpassed hydraulic buffering system–for the lifetime of the furniture

2. Easy assembly:quick fitting with self closing

3. 4holes plate

4. Open&Close:noiselessly,calmly

5. Excellent durability

6. Customer's Logo: available

7. Passed 100000 open-close test

8. Passed salt and mist for over 36 hours

9. Competitive price

10. Arm cover, cup cover all are avaliable

11. Passed ISO9001:2008



About Gerbon:

Gerbon is...

...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
