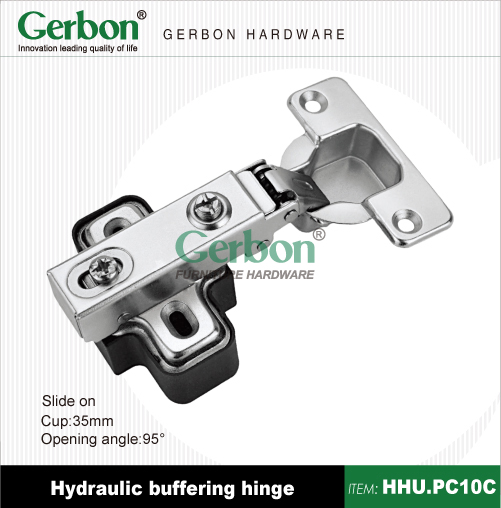

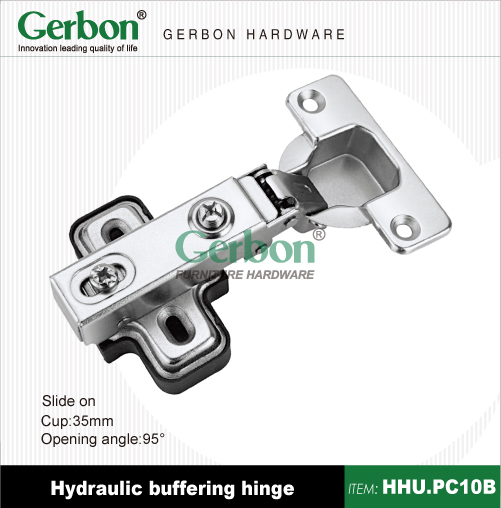

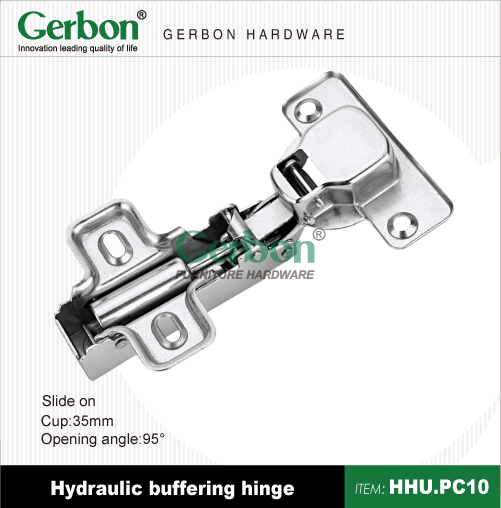

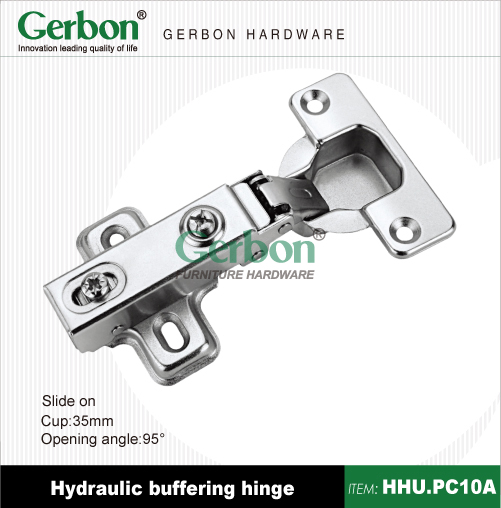

Hydraulic Buffering Hinge
HHU.PC10
Slide-on steel hinge
Product details:
|
Name: |
Slide-on steel hinge |
|
Item No.: |
HHU.PC10A/B/C |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated |
|
Salty test: |
48 hours |
|
Open and close times |
80000 cycles |
|
Cup diameter |
35mm |
|
Door (C) dimension |
3-7mm |
|
Depth of the cup |
11.5mm |
|
Door thickness |
14-23mm |
|
Opening angle |
95degree |
|
Brand |
Gerbon |
Advantages for furniture & cabinet user:
1. Unsurpassed hydraulic buffering system–for the lifetime of the furniture
2. Soft close
3. Thick plastic plate
4. Open&Close:noiselessly,calmly
5. Excellent durability
6. Customer's Logo: available
7. Passed 80000 open-close test
8. Passed salt and mist for over 48 hours
9. Competitive price
10. Arm cover avaliable
11. Standard screws, dowel screws, euro screws all available
12. 45mm, 48mm, 52mm cup all available
13. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
