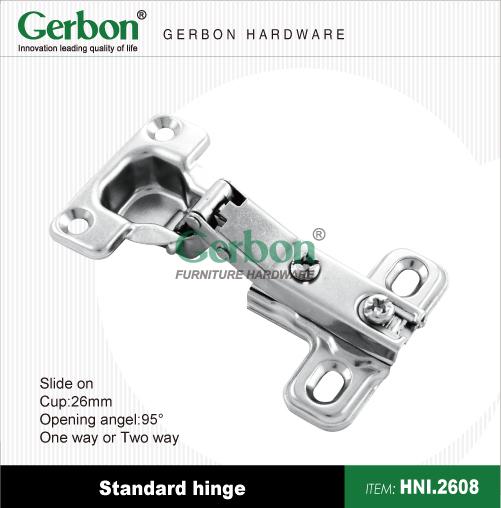

Standard Hinge
HNI.2608
26mm cup special hinge
Product details:
|
Name: |
26mm cup special hinge |
|
Item No.: |
HNI.2608 |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated or zinc plated |
|
Salty test: |
36 hours |
|
Open and close times |
80000 cycles |
|
Cup diameter |
26mm |
|
Door (C) dimension |
3-7mm |
|
Depth of the cup |
9.5-9.8mm |
|
Door thickness |
14-21mm |
|
Angle |
95 degree |
|
Brand |
Gerbon |
Advantages for cabinet & furniture user:
1. Long lifetime of the furniture & cabinet
2. Slide-on type
3. 2 holes plate
4. Excellent durability
5. Customer's Logo: available
6. Passed 80000 open-close test
7. Passed salt and mist for over 36 hours
8. Competitive price
9. Screws with polybag are available
10. Knock in dowel available
11. Two way and one way all available
12. Nickel plated and zinc plated are all available
13. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
