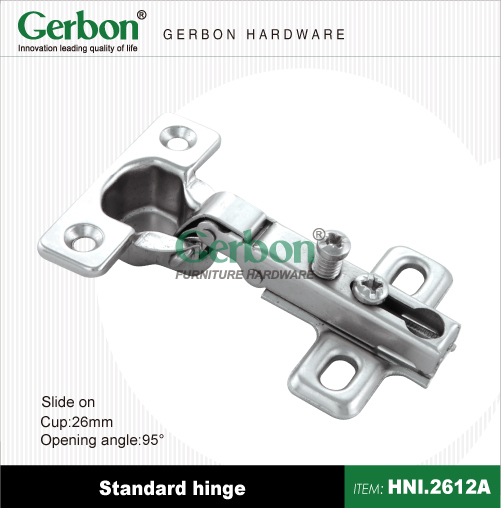

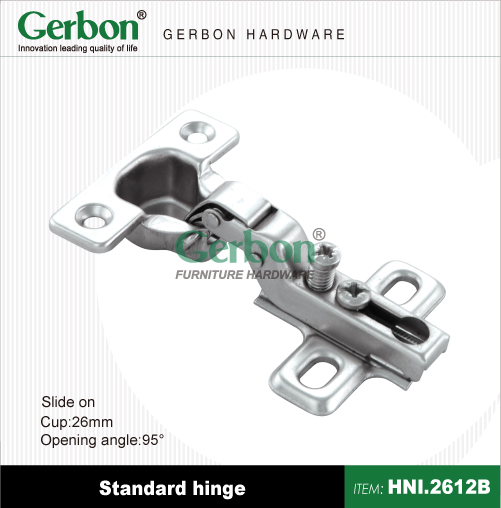

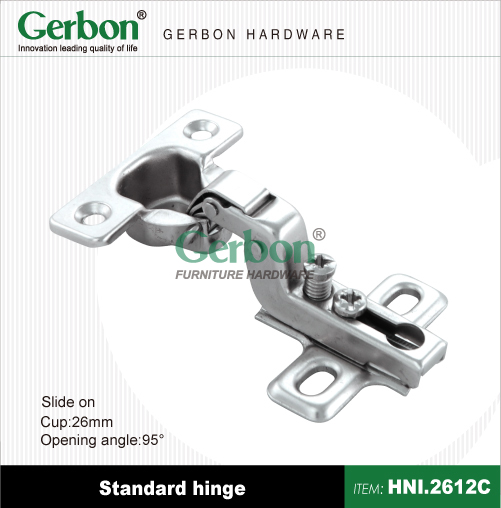

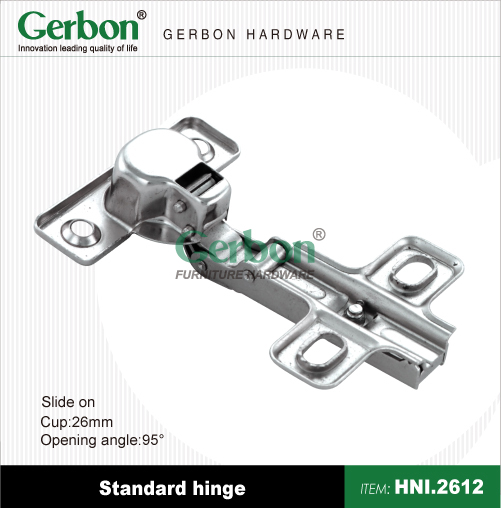

Standard Hinge
HNI.2612
26mm slide-on with spring hinge
Product details:
Name: |
26mm slide-on with spring hinge |
Item No.: |
HNI.2612A/B/C |
Material: |
Steel |
Finished |
Brass first, then nickel plated |
Salty test: |
36 hours |
Open and close times |
80000 cycles |
Cup diameter |
26mm |
Door (C) dimension |
3-7mm |
Depth of the cup |
9.5-9.8mm |
Door thickness |
14-21mm |
Opening angle |
95 degree |
Brand |
Gerbon |
Advantages for cabinet & furniture user:
1. Unsurpassed hydraulic buffering system–for the lifetime of the furniture
2. 2holes plated
3. Excellent durability
4. Customer's Logo: available
5. Passed 80000 open-close test
6. Passed salt and mist for over 36 hours
7. Competitive price
8. Polybag with printed and screws all are avaliable
9. One way
10. Standard screws, euro screws, knock-in dowel are all availbale
11. 32mm cup, 38mm cup all available
12. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
