Standard Hinge
HNI.3521

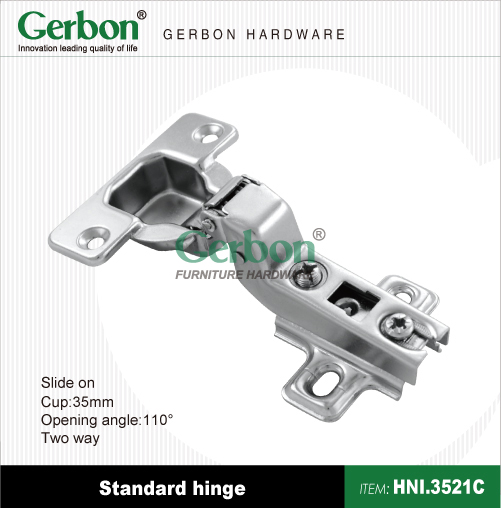

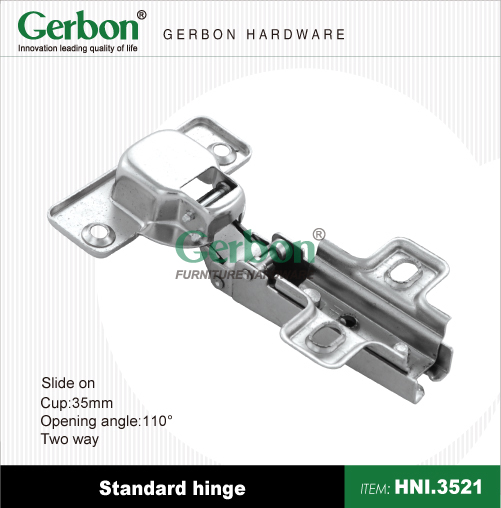

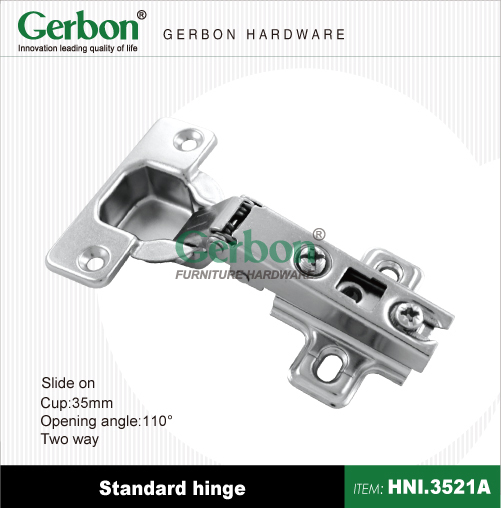

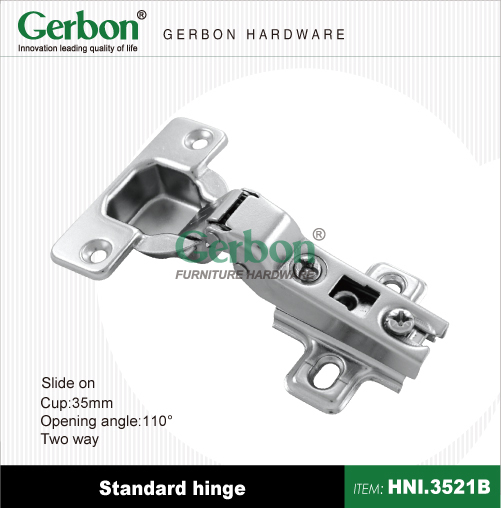

FGV type concealed hinge
Product details:
|
Name: |
FGV type concealed hinge |
|
Item No.: |
HNI.3521A/B/C |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated |
|
Salty test: |
36 hours |
|
Open and close times |
80000 cycles |
|
Cup diameter |
35mm |
|
Door (C) dimension |
3-7mm |
|
Depth of the cup |
11.3mm |
|
Door thickness |
14-21mm |
|
Opening angle |
110degree |
|
Brand |
Gerbon |
Advantages for cabinet & furniture user:
1. Unsurpassed hydraulic buffering system–for the lifetime of the furniture
2. Plane hole, 2holes, 4holes are all available
3. Excellent durability
4. Customer's Logo: available
5. Passed 80000 open-close test
6. Passed salt and mist for over 36 hours
7. Competitive price
8. Polybag with printed and screws all are avaliable
9. Standard screws, euro screws, knock-in dowel are all availbale
10. 45mm cup, 48mm cup, 52mm cup all available
11. Two way12. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
