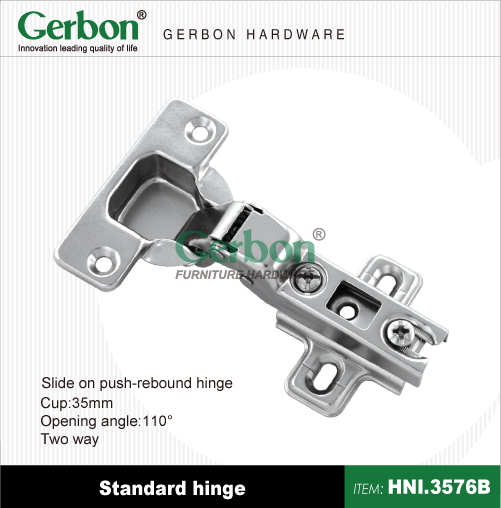

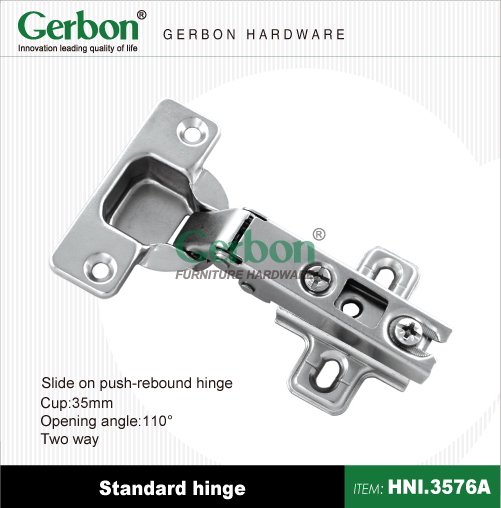

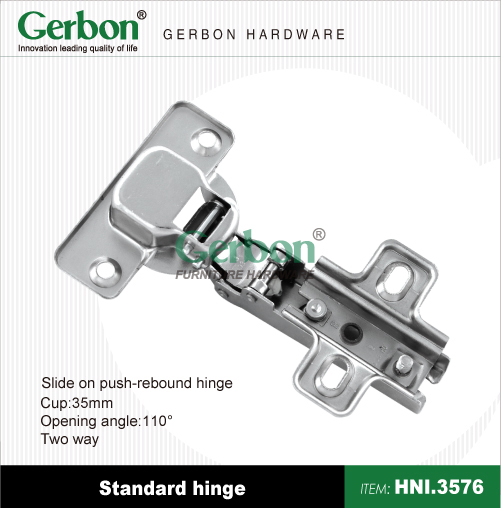

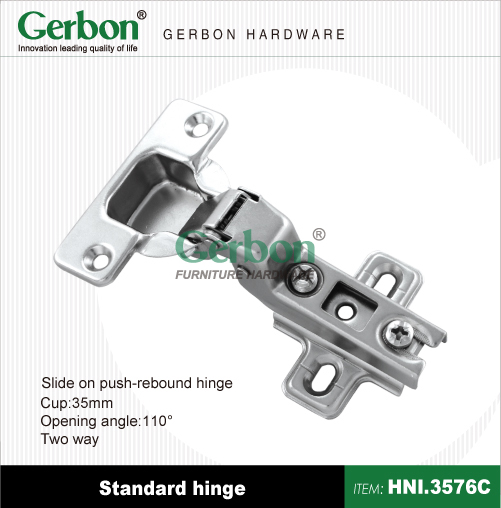

Standard Hinge
HNI.3576
Types of hinges
Product details:
|
Name: |
Slide-on push-rebound hinge |
|
Item No.: |
HNI.3576A/B/C |
|
Material: |
Steel |
|
Finished |
Brass first, then nickel plated |
|
Salty test: |
36 hours |
|
Open and close times |
80000 cycles |
|
Cup diameter |
35mm |
|
Door (C) dimension |
3-7mm |
|
Depth of the cup |
11.3mm |
|
Door thickness |
14-21mm |
|
Opening angle |
110degree |
|
Brand |
Gerbon |
Advantages for cabinet & furniture user:
1. Long lifetime of the furniture
2. Plane hole, 2holes, 4holes are all available
3. Excellent durability
5. Customer's Logo: available
6. Passed 80000 open-close test
7. Passed salt and mist for over 36 hours
9. Competitive price
10. Polybag with printed and screws all are avaliable
11. Two way
12. Slide-on push-rebound type
13. Standard screws, euro screws, knock-in dowel are all availbale
14. 45mm cup, 48mm cup, 52mm cup all available
15. Passed ISO9001:2008
About Gerbon:
Gerbon is...
...a highly-regarded partner in furniture, cabinet, bathroom and property development. Gerbon's comprehensive hardware technology supply solutions include: hydraulic hinge, standard hinge, soft close slide, standard slide, handle, caster, lock, and other furniture fittings.
